HYB506RT

←Left
  • HYB506RT
    1/1HYB506RT
Right→

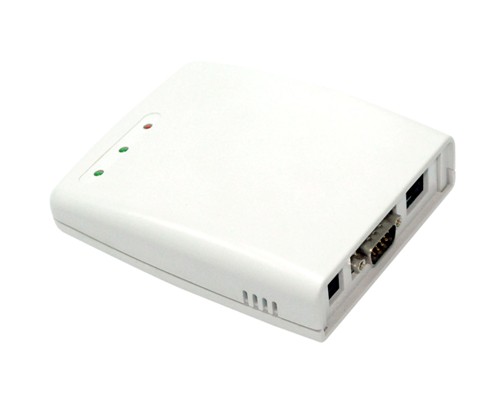

      HYB506RT(Version UHFReader06) is a high performance Multiple Protocol UHF RFID Reader. It is designed upon fully self-intellectual property. Based on proprietory efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, attendance system, anti-counterfeit and industrial production process control system.
FEATURES

      Support ISO18000-6B, ISO18000-6C(EPC C1G2) protocol tag;
      860~928MHz frequency band(frequency customization optional);
      FHSS or Fix Frequency transmission;
      RF output power up to 30dbm(adjustable);
      Built-in wideband antenna with effect distance up to 500mm*;
      Support auto-running and interactive work mode;
      Low power dissipation with single +9V DC power supply;
      Support TCP/IP RS232 and Wiegand interface;
      Output format and parameters configurable;
      Provide SDK and demo software to facilitate further development.

CHARACTERISTICS

l        Absolute Maximum Rating

ITEM

SYMBOL

VALUE

UNIT

Power Supply

VCC

15

V

Operating Temp.

TOPR

-10~+60

Storage Temp.

TSTR

-25~+80



l        Electrical and Mechanical Specification

Under TA25℃VCC+9V unless specified

ITEM

SYMBOL

MIN

TYP

MAX

UNIT

Power Supply

VCC

6

9

12

V

Current Dissipation

IC



400

700

mA

Frequency

FREQ

860



928

MHz

Effective Distance*

Dis

0

100

500



* Effective distance depends on protocol, tag and environment.
