HYAR8

←Left
  • HYAR8
    1/1HYAR8
Right→

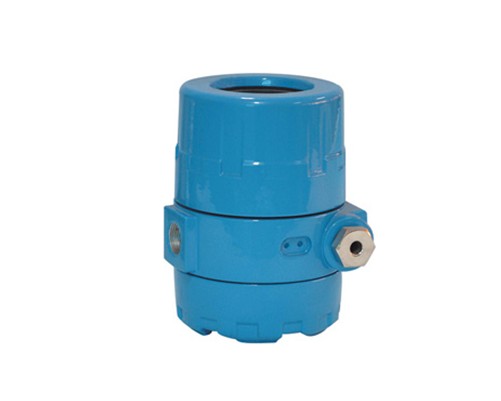

HYAR8 is a Active reader Match IP 65(water Proof, Dust Proof) with the most advance technology, applying in wide alleyway,Loing distance, quick identification, meeting the special demand of identification, tracking and positioning among many tags simultaneously

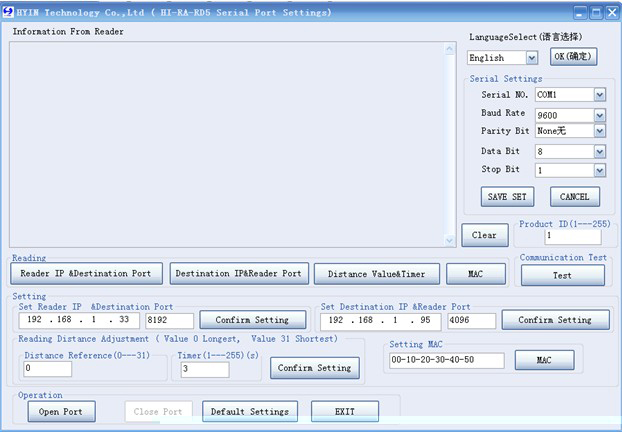

  • Maximum identification distance is 2 to 80 meters and can be easy adjusted by command through the computer at the scene.
  • Support identification of fast moving objects with speed up to 200 kilometers
  • Work at globally free 2.45GHz ISM band,125 channels, 8MHz channel bandwidth
  • Data rate is 1Mbps , adjustable RF power is -20dBm-0dBm ,max transmission power is 1mW
  • Communicate with other equipment through RS232/RS485/WEIGEN-26/TCP/IP/GPRS. Asynchronous communication rate 9600BPS-38400BPS
  • Communicate with computer through RS232/485/weigand 26 or wirelessly
  • Encrypted and certified to assure data safety, preventive of eavesdropping and intentional decoding
  • Applied channel isolation technology, no interferences between equipments
  • Advanced anti-collision techniques, Support multi-tags read and write
  • Customized microwave work modes, adjustable transmission power
  • Meet harsh industrial environment requirements,Applied design techniques of anti-interferences and thunders

Specification

modulation

GFSK

frequency

2.4 - 2.45 GHz

Transmission power

≤3dBm(software adjustble)

Antenna polarization

Vertical polarization

Reading/writing range

omni directional

Microwave communication distance

2-80m

Microwave communication error check

Cyclic redundancy check (CRC16)

Communication encryption

Temporarily confidential

Bit error ratio/B.E.R

10-7



Electric characteristics:



Power

+9V to +12V DCMAX 500mA

Communication interface

RS232/RS485/WEIGEN-26/TCP/GPRS

Baud rate9600-115200



Environment characteristics:



Temperature

-40 — +80

Storage temperature

-60 — +80

Anti-electromagnetism Interface

10V/m 0.1-1000MHz AM waves

Reliability

MTBF≥70000 hours

Work life

15years



Others



Size

155*148*35mm

Weight

05Kg

Shell material

cast aluminum

Color

grey/black

Installation position

Pole or beam

Installation manner

Pasted ,Hanging on side or keep flat
