HYLU60

←Left
  • HYLU60
    1/1HYLU60
Right→

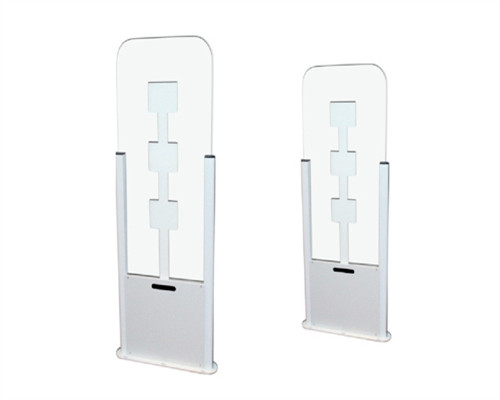

HYLU60 is a high performance EPC C1G2 (18000-6C), ISO18000-6B protocol UHF tag gate device. Designed upon fully self-intellectual property, it supports fast tag anti-collision operation with high identification rate. It can be directly connected to host, controller and other relative equipments. It can be widely applied in many RFID application systems such as logistics, open conference attendance system, open access control and industrial production process control.


FEATURES

1. Self-intellectual property;
2. Support ISO18000-6B, ISO18000-6C(EPC C1G2) protocol tag;
3. 902~928MHz frequency band (frequency customization optional);
4. FHSS or Fix Frequency transmission;
5. RF output power up to 30dbm (adjustable);
6. Support RS232, RS485 and TCPIP interface;
7. Support motion direction detection with embedded infrared sensor controller;
8. Support controller-gate coordinate work mode or independent work mode;
9. Low power dissipation with built-in buzzer and LED;

10.High reliability design.

*Effective channel width depends on tag, antenna mode and working environment.

ITEM

SYMBOL

VALUE

UNIT

Color



Light Grey with yellow edge



Height1

H

170

cm

Width2

W

60

cm

Thickness3

T

15

cm

Weight4

WT

40

kg

Power Supply

VAC

220/50

V/Hz

Current.

IAC

160

mA
