RFID technology is widely applied in vehicle assess control system it provides significant advantages such as non-stop toll collection, and ensure the legal access of Vehicle. The Vehicles could mount HYTSL1 UHF Tag on its number plate, or stick the HYTSG62 Tag on Windshield Glass. UHF Reader HYB608 and HYB612 could Reader the tags From long distance. Then the Computer could judging this vehicle is legal to enter nor not. From the computer connect with data base, the guard could verify the photo of the car driver for high security.
HYINTECH UHF long distance RFID technology providing enterprises and communities with hands-free control to ensure only authorized vehicles to enter into. The system works in pass/fail mode--access granted or access denied. Records could be stored in the database for inquiring periodic vehicle access history and parking fees.
1. User drives the vehicle approaching the barrier gate with the tag/sticker attaches on windscreen (HYTSG62), car number plate or windshield rain wiper(HYTSL1).
Please make sure no anti-sunshine film (tint film) in front of the windscreen at the tag location for HYTSG62.
2. HYB608 UHF RFID reader&writer detects the tag/sticker when it is around 5 meters range.
HYB612 UHF RFID reader&writer detects the tag/sticker when it is around 10 meters range.
Note: Choosing the Module depends on specific distance need. Distance too long, may read the tags from other cars not supposed to read. However, the reading distance is adjustable, the cost of HYB612 is higher than HYB608.
For most of the parking case, HYB608 could be the most suitable.
3. The barrier gate will be opened automatically.
4. The vehicle enters or exists.
5. All access history will be stored in database for later analysis.
l Installation and Software development Instruction.

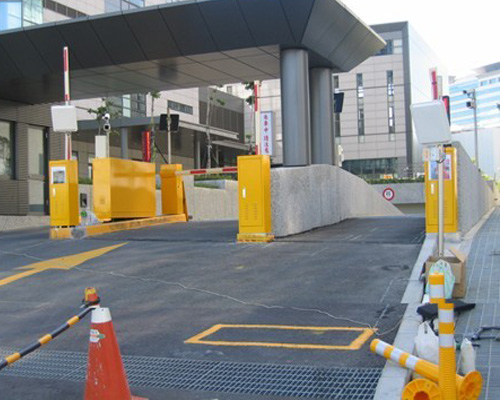

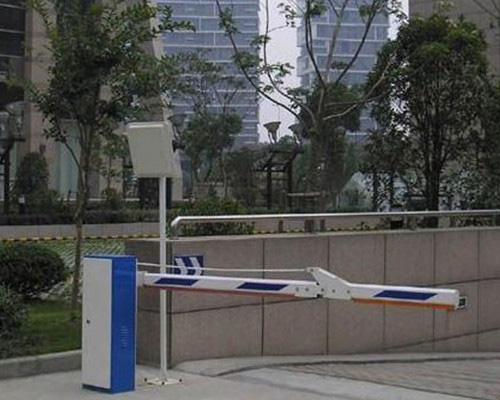

Usually the reader is installed near the barrier or control room. The tag stores the vehicle number and its owner's information a prepaid account can be linked to it.

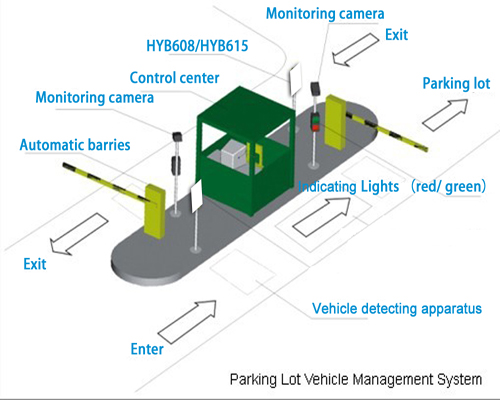

When a vehicle's wheels press the underground vehicle detecting apparatus (a sensor coil) the standby reader is activated to read vehicle tag information to check its validity according to the data stored in the computer database. If the car is authorized the reader will log the entry time and vehicle number then transmits the entry data back to host computer and trigger a command to lift the barrier. The exit process is the similar: the reader logs exit time and vehicle number and transits the data to the host computer the car owner's account is then debited for the time he/she spent in the parking lot.
If the tag failed to be authorized or the account is not sufficient to pay the parking fee the system will alarm security and the camera snaps a photo and the barrier won't lift.
