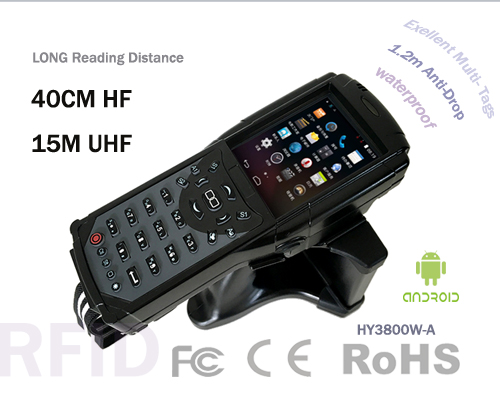

HY3800W-A

←Left
  • HY3800W-A
    1/1HY3800W-A
Right→

1 Compact structure design, multi internal plastic buffer, sustain 1. 2 meters drop, Water proof, IP65 Industrial Standard

2 Super Power Battery 7.4V,2500MAH/3.7V,5000MAH, Long Working Time. Sustain consecutive Working above 20 hours (depends on specific situation), 10 days standby. Extended battery life.

3 Efficiency and power saving 1.2GHZ CPU System ,Long working time

4 Readable under sun-shine 3.5 inch LCD

5 Android System

6 Hardware extendable functions

7 High capability Barcode scanner (optional) engine, Designed for 10 years using.

8 Sensitive RFID (LF/HF/UHF) Module

9 Wifi &BT( Standard), GPRS/3G(optional),GPS/Optional, Camera/Optional

10 Wireless Charging(Optional)

11 Support further software development, SDK(Software Development Kit ) Provided

CPU



1.2 GHZ Due Core

OS



  Android 4.4

Memory

RAM

1GB

F-ROM

4GB

Barcode Scan engine

Scanner

1D /2D Laser Barcode Scanner

Module

 Opticon /Moto

Scan Speed

100 times per second +-2 times

Scan Distance

60-650mm

Angle

54±5

Width

60-360mm At Max Reading Distance

Resolution

0.127-1.00mm

Code

UPC-A; UPC-E; UPC-E1; EAN-8; EAN-13; Bookland EAN; Code 128; UCC/EAN-128; Code 39; Trioptic Code 39; Code 39 Full ASCII; Code 93; Code 11; Interleaved 2 of 5; Discrete 2 of 5; Codabar; MSI; GS1 DataBar 14; GS1 DataBar Limited; GS1 DataBar Expanded;

RFID

LF 125KHZ

 Max Reading10cm

LF 134.2KHZ

Max Reading 40cm

HF 13.56MHZ

Max Reading 40cm

UHF 860-928M

Max Reading above 15Meter

LCD

Type

TFT-LED QVGA Touch Screen

Resolution

QVGA240X320Readable Under Sun Shine

Size

3.5 inch

Input

Soft Keyboard

English, Chinese Input(Multi Language Customizable)

Hard Keyboard

30 Key

ScanKey

 At the Middle

Function Modules

Standard

WPA 802.11i(WPA2),WEP,TKIP,TLS,TTLS,AES,PEAP,MD5

Standard

BT V3.0

Optional

Internal 3M camera

Optional

Internal GPS Signal 48,Accuration 2.5mSpeed below 0.01m/s

Optional

Internal LF/HF/UHF RFID Reader

Optional

Internal GPRS/3G WCDMA

Power

   Main Power

7.4V,2600mah/3.7V 5200mah Li-ion

RTC Battery

 Button battery

Standby

10 days

Working

Above 10 hours, depends on specific situation

Extension



Micro SD/TF Slot

Industrial Standard



IP54

Size

Human Engineering Design

190(L)×78(W)×40(T) mm

Weight



650g( Including Battery)

Working Environment

Operation Temp.

-15~+50

Storable Temp.

-20~+60

Working Wet

 5-95%

Storage Wet

 5-95%

Anti-Drop

50 inch(1.2Meters)Multi Drop
